Species:Combi
Size:18mm*1220*2440
Glue:WBP Melamine
Film:Brown/Red
Grammage:180g/m2
Cycle Life:About 8-10 repeated using times according to formwork application projects
Inquiry to us, you will get the best quote !
Detailed introduction
COMBI core Chantaplex Film Faced Plywood Profile
what is combi core?
Combination Cores are a hybrid of veneer and composites that take advantage of the best properties of both by using veneers to build the center of a core, directly under the face and back veneers. Combination cores are proprietary to, and branded by hardwood plywood producers.So COMBI Core Film Faced Plywood is the type of film faced plywood with combi core .The brand of COMBI Core Film Faced Plywood in chanta is chantaplex.
There are four types of Film Faced Plywood produced by CHANTA, with brand LORDPLEX(FULL HARDWOOD CORE),CHANTAPLEX(POPLAR AND HARDWOOD COMBI CORE),ROCKMARINE(FULL POPLAR CORE) and BUILDPLEX (RECYCLE CORER) respectively.These Four Types of Film Faced Plywood correspond to different grades and prices. Each Type of Film Faced Plywood has its own unique characteristics and usage occasions. Customers can choose different plywood according to their needs.
COMBI Core Film Faced Plywood features
Product Name:COMBI Core Film Faced Plywood
Core Species: Poplar Core Veneer ANDeucalyptus veneer. Film:Brown,Black,Red,Green,and so on. Glue:WBP Melamine The Poplar Core Film Faced Plywood Can be About 6-10 repeated using times according to formwork application projects.
You can get the details of the Poplar Core Film Faced Plywood from the table below
Product | FILM FACED PLYWOOD | Species: | COMBI | |||
Size: | 18mmx1220x2440 | Glue: | WBP | |||
Film: | BROWN | Grammage: | 180g/㎡ | |||
Sr. | Property | Unit | Test | Value of | Result | |
⒈ | Moisture Content | % | EN 322 | 10% | Check out | |
⒉ | Density | kg/cbm | EN 323 | 580 | Check out | |
⒊ | Bonding | Bonding | Mpa | EN 314 | Max: 1.37 | Check out |
Damage Rate | % | ----- | 65% | |||
⒋ | Bending | Longitudinal | Mpa | EN 310 | 6800 | Check out |
Lateral | 5200 | |||||
⒌ | Bending | Longitudinal | Mpa | 48.3 | Check out | |
Strength | ||||||
N/mm | Lateral | 35.7 | ||||
⒍ | Cycle Life | About 6~10 Repeated Using times According | ||||
Projectes by formwork Application |

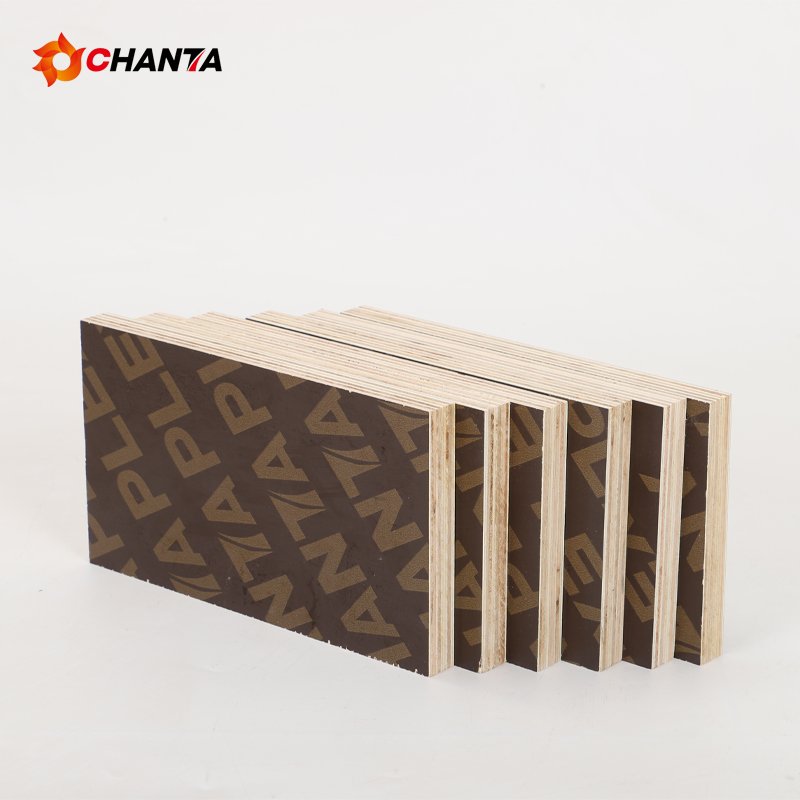

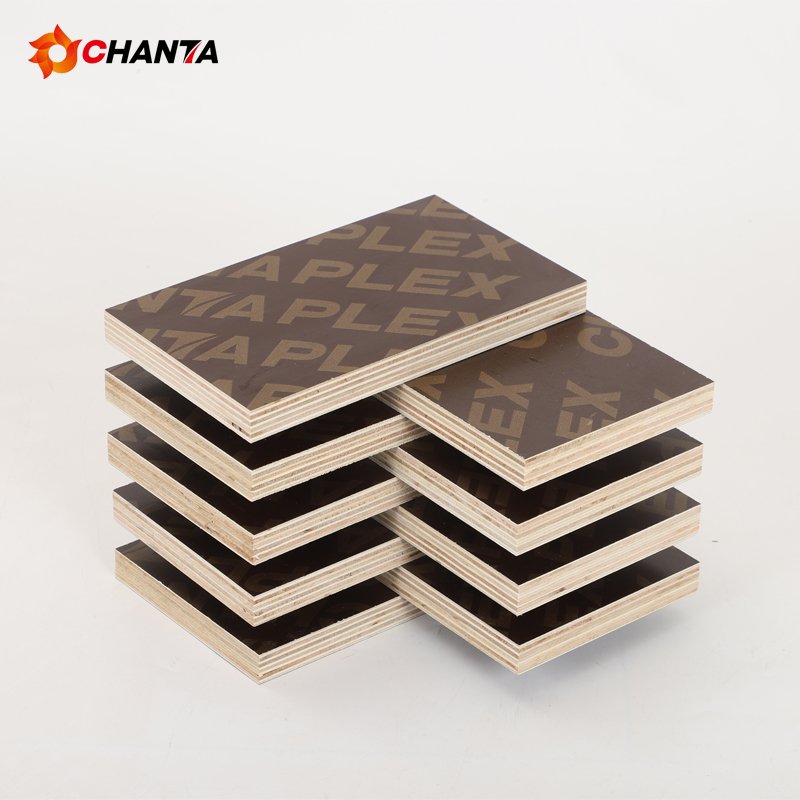

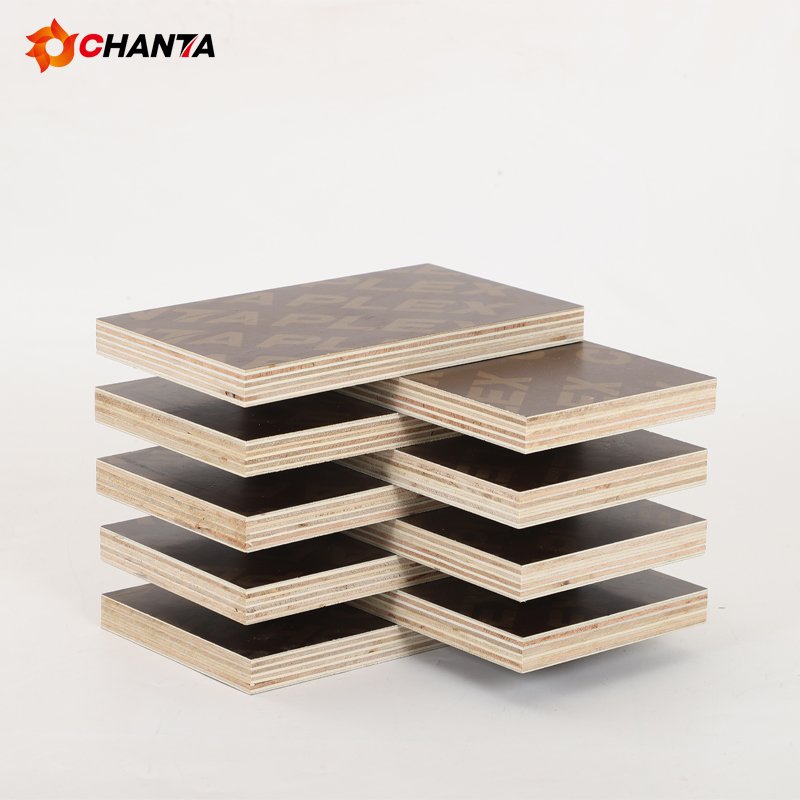

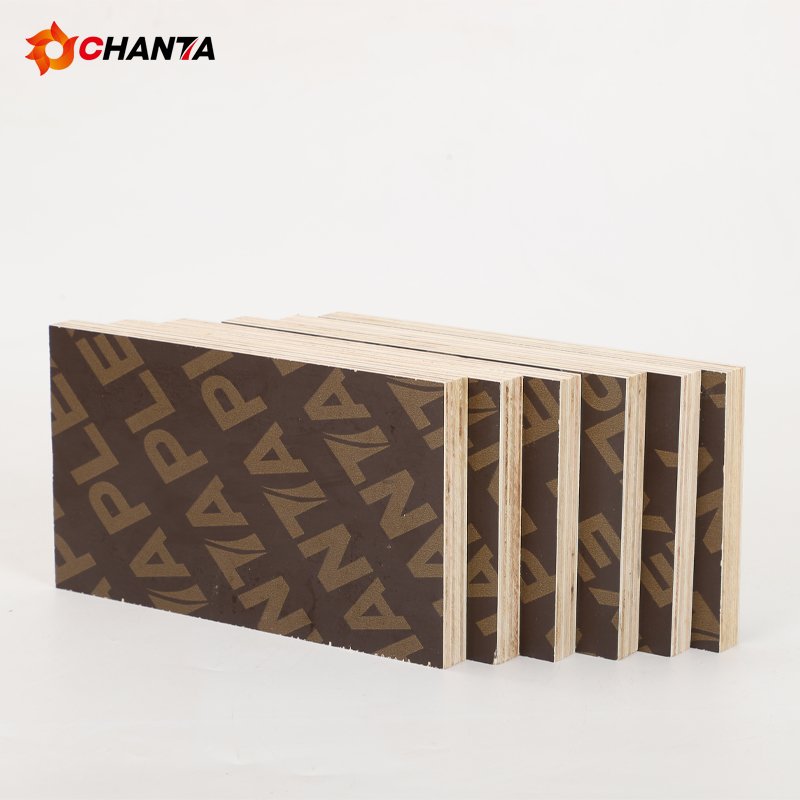

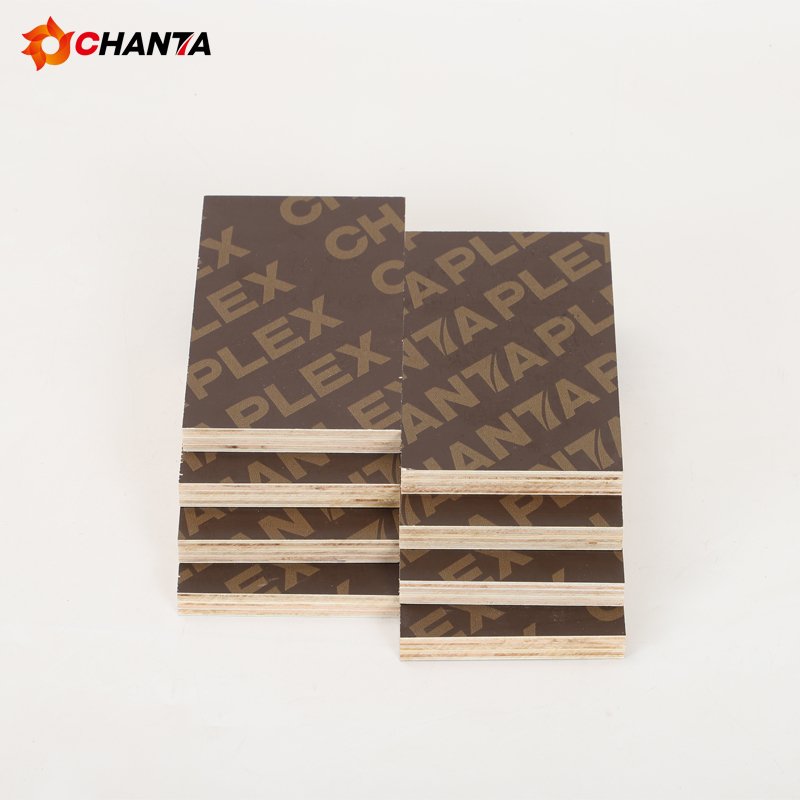

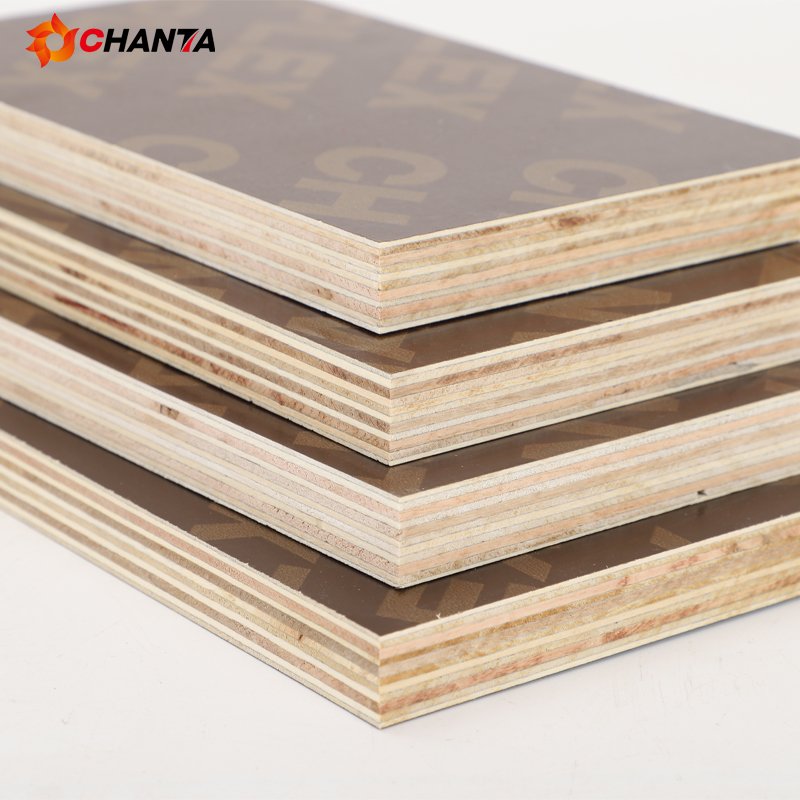

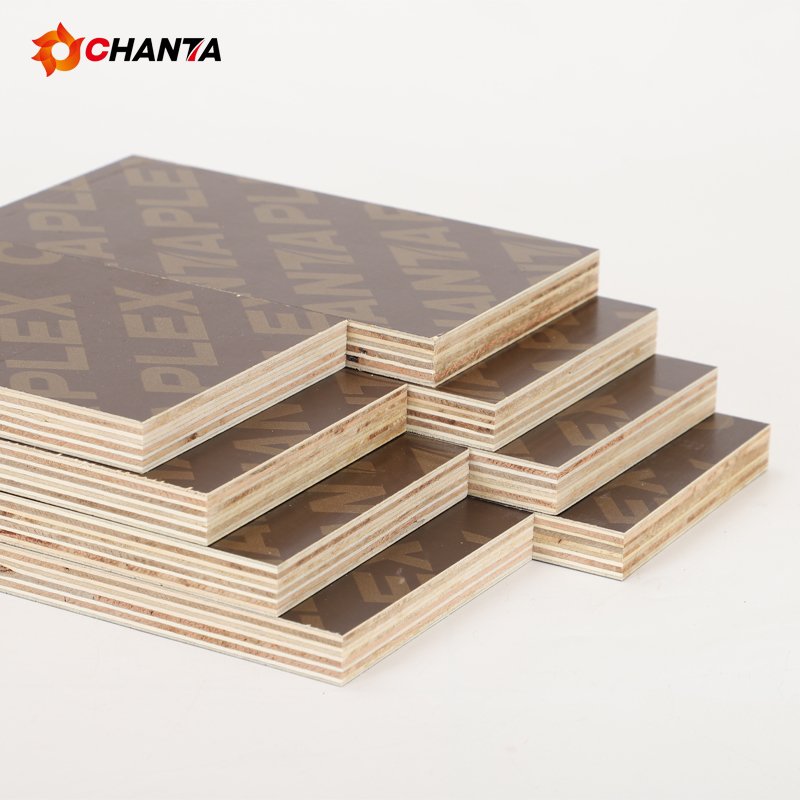

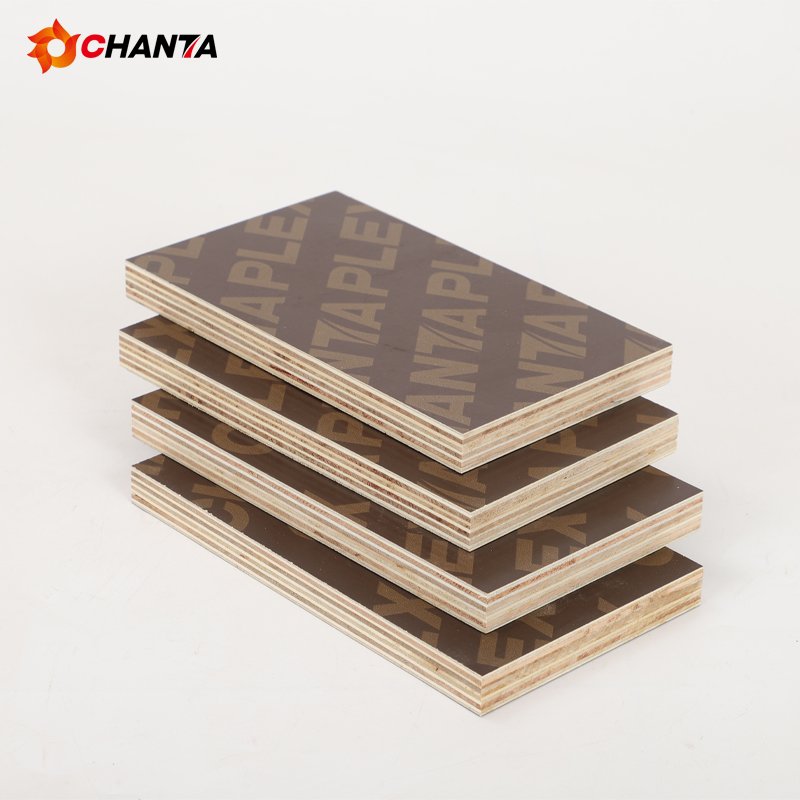

COMBI Core Film Faced Plywood images
